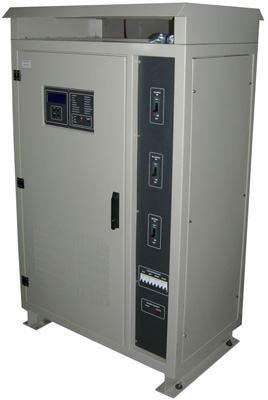

Heavy-duty industrial battery chargers/rectifiers designed to provide secured DC power for critical loads. These chargers are designed to charge all types of batteries, such as Ni-Cd, Vented Lead Acid, Valve-Regulated Lead Acid types etc. Battery chargers are constant voltage devices with built-in current limiting feature and accurate voltage regulation for optimized performance.
Key design Features :
: Battery chargers are designed for high reliability components are selected with high de-rating factor to assure maximum MTBF.
: Components are carefully selected to provide a system that will operate at extreme ambient conditions with life expectancy in excess of 25 years.
: Enclosures are industrial grade that are made of firmly welded heavy-gauge steel with an attractive, long-lasting powder textured coating (RAL 7032). Standard cabinets are NEMA-1 (IP-20). Other protection classes and colors are available upon request.
: Most power and control modules are provided in sub-assembled chassis with plug and socket connections for easy serviceability and minimized spare part inventory.
: Output floats voltage, equalize voltage, current limit and alarm levels are easily adjustable.
: All components are front accessible; no side or back clearance is required. Internal components and connections are easily accessible and/or removable through a hinged front door.
: Cabinets are floor mountable with bottom entry equipped for cable or conduit entrance. Input, output and remote alarm connections are wired to internal terminal blocks that are easily accessible.
: Chargers are featured with dynamic load sharing capability to ensure load is equally shared between parallel chargers.
: Chargers are designed and tested in accordance with IEC Standards.
